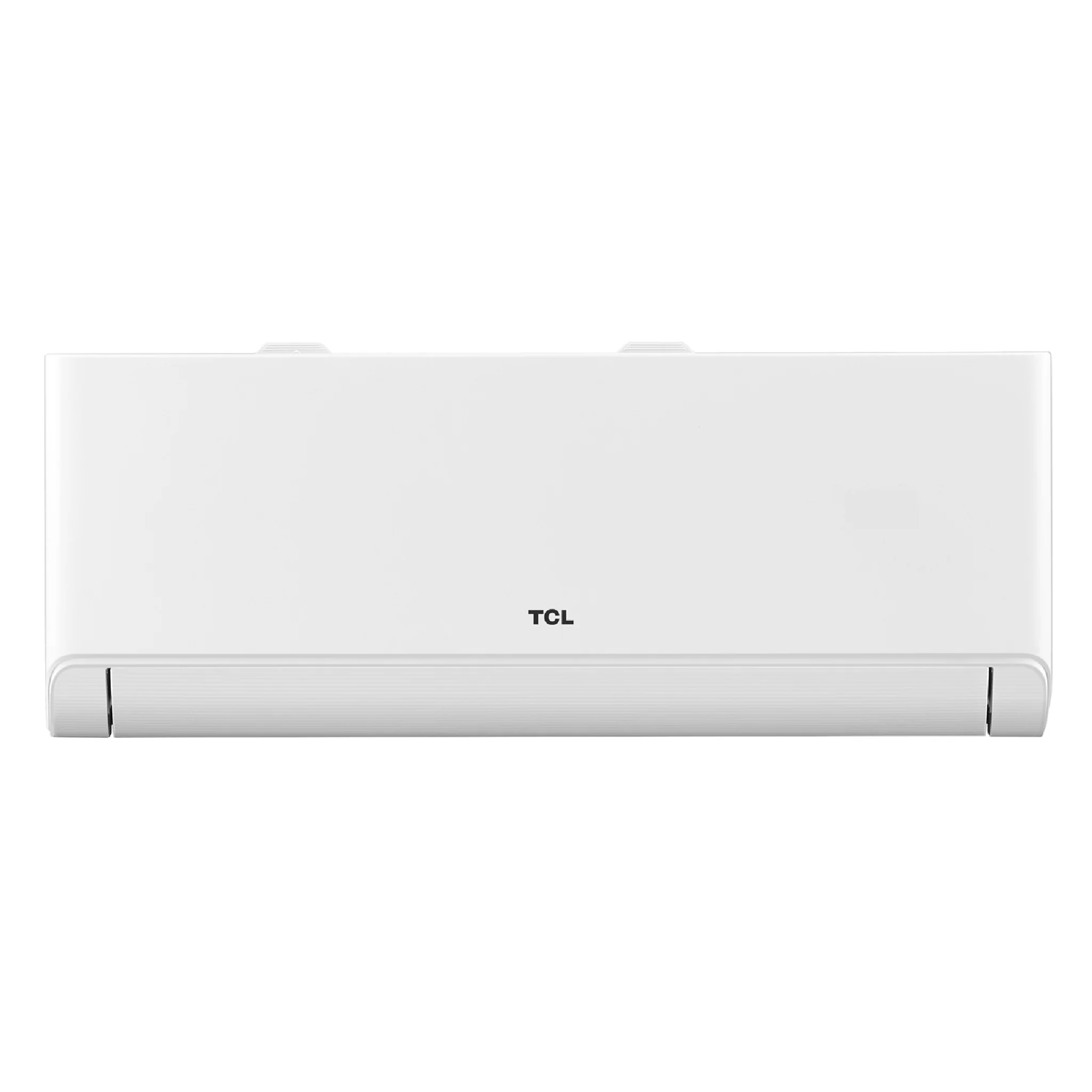

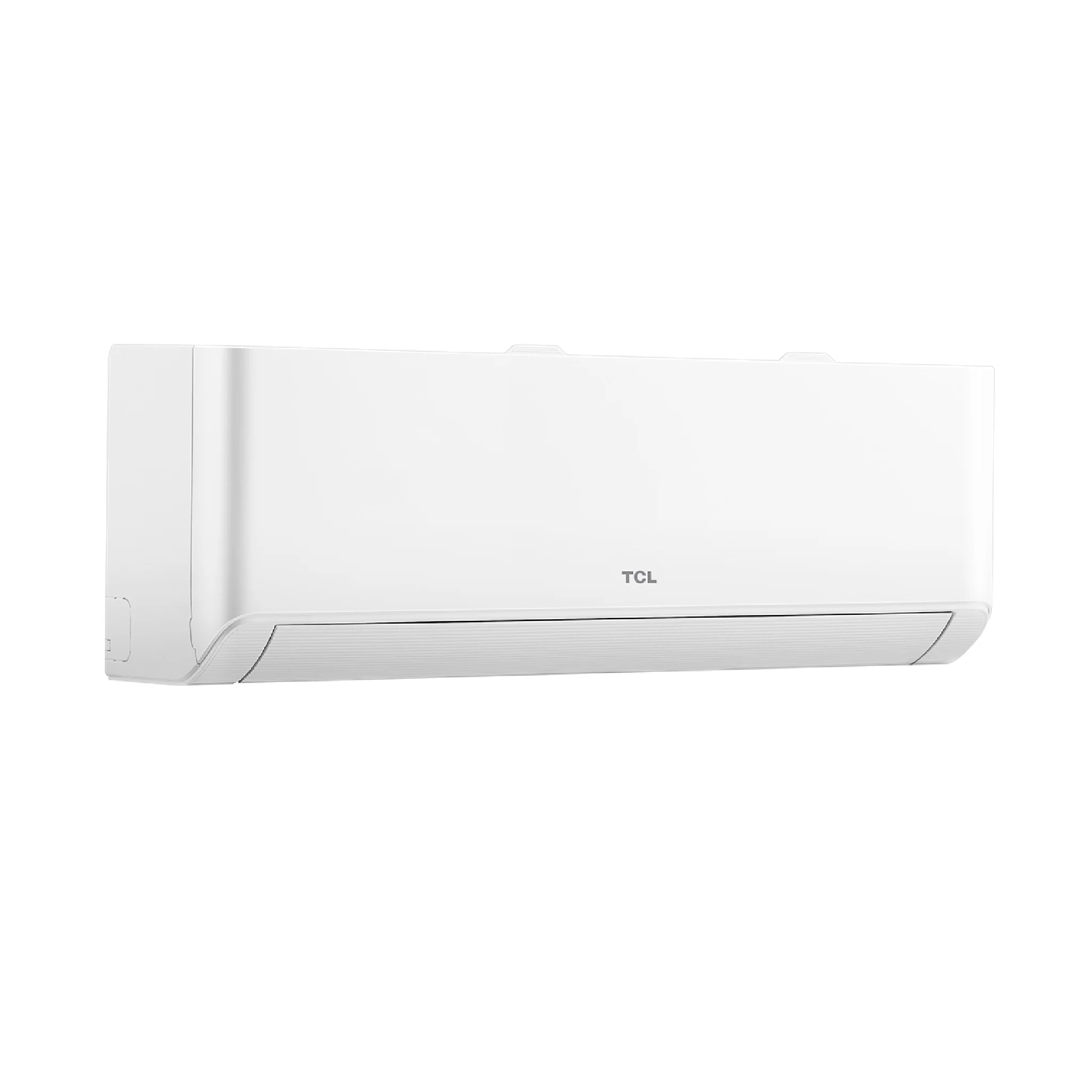

TAC-10CSD/KEI2 TCL 1HP AI SPLIT INV AC FULL DC

Product Overview

• T-AI Technology with 37% Energy Saving vs Full DC INVERTER

• T-AI Technology with 80% Energy Saving vs Non- Inverter AC

• Golden Titanium Fins

• Corrosion-Proof Copper U Bends

• High-Stability DC PCB w/ Double-Sided Conformal Protection

• 27dB low Noise Operation

• 30S Fast Cooling

• IDU&ODU Self-cleaning

• Filter Cleaning Reminder

• Gentle Breeze

• 4 Way Air flow


• 4 Easys: Easy Installation / Easy Maintenance/ Easy Cleaning / Easy Assembly

Warranty Terms

• Parts: 1 Year  / 10 Years Compressor

• Labor: 1 Year

General Specification

• Nominal Size: 1.0 HP

• Remote: Yes

• Timer: Yes

• Manual: Yes

• Cooling Capacity: 10000kj/h

• Color: White

• Control Type: Remote

• Cooling Area (sq. meters): 9~16 m2

• Noise Level (Indoor) - HIgh: 37

• Noise Level (Indoor) - Low: 31

• Filter: Yes

• Airflow Direction Control(Up & Down): Remote

• Airflow Direction Control(Left & Right): Remote

• Temperature Control: Remote

• Fan Speed: Turbo-High-Medium High-Meduim-Medium Low-Low-Mute

• Energy Efficiency Ratio: 4.9

• Net Weight (kg): 8 / 18.5

• Gross Weight (packed): 10 / 20.5

• Net Dimensions (LxWxH) - mm & inches: 790 × 192 x 275 (mm)/31.10 x 7.6 x 10.8 (in)/ 712 × 276 × 459 (mm)/21.03 × 10.87 × 18.06 (in)

• Gross Dimensions (LxWxH) - mm & inches: 860 × 265 x 345 (mm)/33.86 × 10.43 × 13.58 (in)/ 765 × 310 × 481 (mm)/ 30.11 × 12.20 × 18.94 (in)

• Power Requirements: 230V~60Hz, 1Ph

• Power Consumption: 780W

What's in the box

• Unit

• Service Manual
• Warranty Card
